Overview

7" TFT screen requires over 600ma current. We know that Arduino Due could supply 800ma current through 5V outpuut pin. If the 7" TFT creen draw over 600mA current from Arduino Due, Arduino Due might not have enough current allowance for other shields or modules. And possibly Arduino Due gets hot.

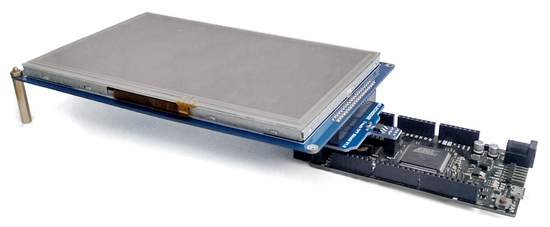

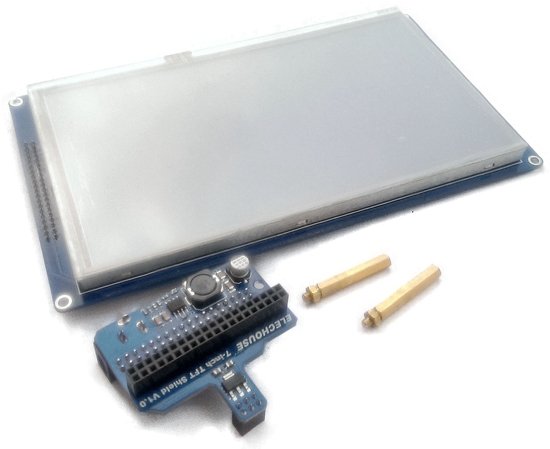

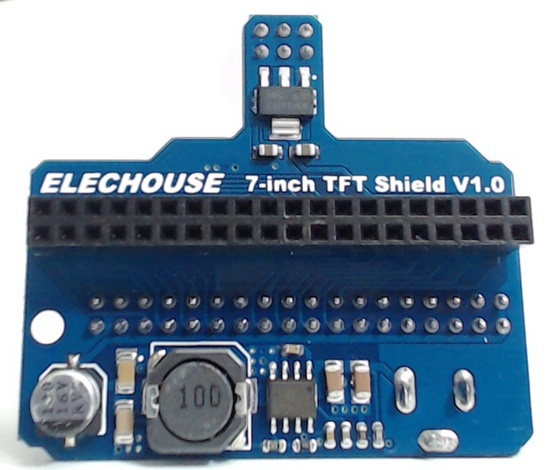

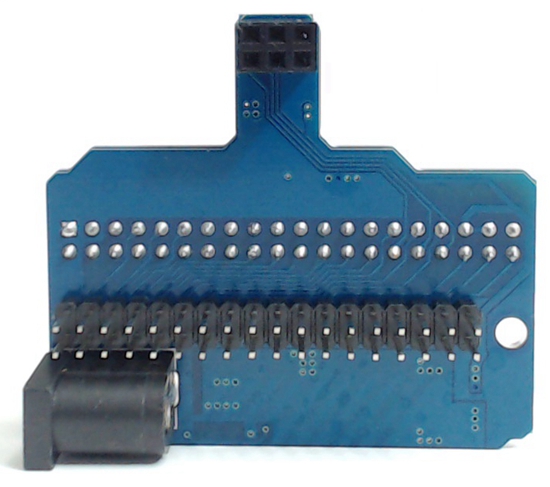

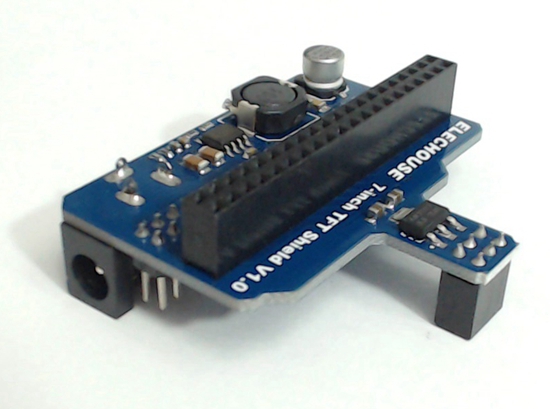

This shield allows you to play 7" TFT screen module with Arduino Due easily.

Note: this TFT shield works with Arduino Due or Taijuino Due. It is not compatible with Arduino Mega.

Parameter

Item Parameter Value Note
TFT Shield Input voltage on shield 7V~16V
Output current
  • 5V: 2.5A
  • 3.3V: 800mA

Compatibility
  • Arduino Due
  • Taijiuino Due
 Not compatible with Arduino Mega
7" TFT screen Voltage

5.0V & 3.3V
  • 5.0V for backlight
  • 3.3V is for TFT controller
Current over 600mA backlight draws most current
Resolution 800*480

Application Tips

7" TFT screen draws as much as 600mA current. Therefore external power supply is required. You have 2 options:

Supply 7~12V through the power jack on Arduino Due or Taijiuino Due

Arduino Due or Taijiuino Due would supply 5V voltage to 7" TFT screen and shield. TFT screen needs over 600mA current. Arduino Due or Taijiuino Due could supply max 800mA current through 5V supply. So it works but leaves not much current allowance for other modules.

Supply 7~16V through the power jack on the TFT shield

TFT shield supply 5V current to Arduino Due or Taijiuino Due. It also supply 5V and 3.3V to 7" TFT screen. TFT shield could supply as much as 2.5A current through 5V. There is enough current allowance for other modules.

Download

TFT Shield Schematic
7" TFT Screen Screen datasheet
Controller SSD1963 datasheet
Touch IC XPT2046 datasheet
Screen Module Schematic
Screen Module Size
Software Library for Arduino
